640x512 thermesch Reseau Kamera Modul mat 150mm Motor Lens
Modell | SG-TCM06N1-M150 | SG-TCM06N1-M100 | SG-TCM06N1-M75 | |
Sensor | Bild Sensor | Ongekillte VOx Mikrobolometer | ||
| Opléisung | 640 x 512 | |||
| Pixel Gréisst | 17 μm | |||
| Spektral Range | 8-14μm | |||
| NETD | ≤50mK@25℃, F#1.0 | |||

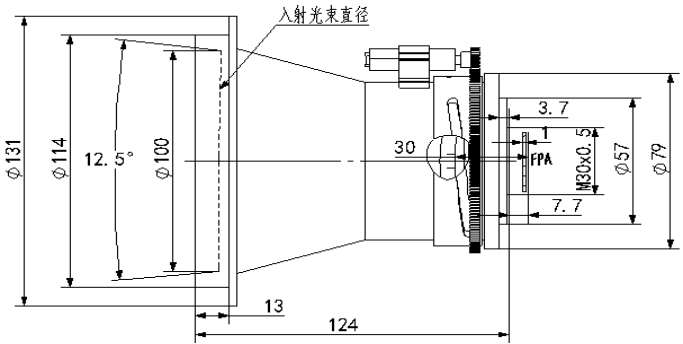

Lens | Brennwäit | 150 mm Motorobjektiv | 100 mm Motor Lens | 75 mm Motor objektiv |
| Optesch Zoom | N/A | N/A | N/A | |
| Digital Zoom | N/A | N/A | N/A | |
| F Wäert | F1.0 | F1.0 | F1.0 | |
| FOV | 4,2°x3,3° | 6,2°x5,0° | 8,3°x6,6° | |
Video | Kompressioun | H.265/H.264/H.264H | ||
| Snapshot | JPEG | |||
| Pseudo Faarf | Ënnerstëtzung: White Hot, Black Hot, Iron Red, Rainbow 1, Fulgurite, Rainbow 2, Fusion, Blueish Red, Amber, Arktis, Tint | |||
| Streamen | Main Stream: 25fps@(704×576), 25fps@(352×288)Substream: 25fps@(704×576), 25fps@(352×288) | |||
Reseau | Network Protokoll | IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, PPPoE, 802.1X, IP Filter | ||
| Interoperabilitéit | ONVIF Profil S, Open API, SDK | |||
| Max. Verbindung | 20 | |||
Intelligenz | Normal Event | Motion Detection, Audio Detection, IP Adress Konflikt, Illegal Access, Storage Anomalie | ||
| IVS Funktiounen | Ënnerstëtzt intelligent Funktiounen:Tripwire,Cross Fence Detection, Intrusion, Loitering Detektioun. | |||
| Feierdetektioun | Ënnerstëtzung | |||
| Interface | Ethernet | 4PIN Ethernet Hafen, 10M/100M Selbst-Adaptatioun | ||
| Alarm In/Out | 1/1 | |||
| RS485 | Ënnerstëtzung | |||
| Opléisung | 50Hz: 25fps@(704×576) | |||
| Stockage Kënnen | Micro SD Kaart, bis zu 256G | |||
| Stroumversuergung | DC 9 ~ 12V (Recommandéiert: 12V) | |||
| Betribssystemer Konditiounen | -20°C~+60°C/20% bis 80%RH | |||
| Stockage Konditiounen | -40°C~+65°C/20% bis 95%RH | |||
| Dimensiounen (L*W*H) | ca. 250mm * 176mm * 176mm | ca. 194mm * 131mm * 131mm | ca. 182mm * 101mm * 101mm | |
| Gewiicht | ca. 1, 4kg | ca. 1,1 kg | ca. 7 20g | |
