| Modell | SG-ZCM8003NK Fotoen | ||||
| Sensor | Bild Sensor | 1/2.3" Sony Starvis progressive Scan CMOS | |||
| Effektiv Pixel | ca.12,93 Megapixel | ||||
| Lens | Brennwäit | 3,85 mm ~ 13,4 mm, 3,5x opteschen Zoom | |||
| Apertur | F2.4~F5.03 | ||||
| Siichtfeld | H: 82°~25° | ||||
| Zoumaachen Focus Distanz | 1m~2m (Wide~Tele) | ||||
| Zoom Geschwindegkeet | ca.2.5s (Optical Wide~Tele) | ||||
| DORI Distanz (Mënsch) | Detektéieren | Observéieren | Erkennen | Identifizéieren | |
| 346m | 137m | 69m vun | 34m vun | ||
| Video | Kompressioun | H.265/H.264/H.264H/MJPEG | |||
| Streaming Kapazitéit | 3 stream | ||||
| Opléisung | 50Hz: 10fps@12MP(4000×3000), 25fps@8MP(3840×2160)60Hz:10fps@12MP(4000×3000), 30fps@8MP(3840×2160) | ||||
| Video Bit Taux | 32kbps~16Mbps | ||||
| Audio | AAC / MP2L2 | ||||
| Reseau | Stockage | TF Kaart (256 GB), FTP, NAS | |||
| Network Protokoll | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||||
| Multicast | Ënnerstëtzung | ||||
| Allgemeng Evenementer | Motion, Tamper, SD Kaart, Netzwierk | ||||
| IVS | Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | ||||
| S/N Verhältnis | ≥55dB (AGC Off, Gewiicht ON) | ||||
| Minimum Beliichtung | Faarf: 0,5Lux/F2,4; | ||||
| Kaméidi Reduktioun | 2D/3D | ||||
| Beliichtungsmodus | Auto, Aperture Prioritéit, Shutter Prioritéit, Gain Prioritéit, Manuell | ||||
| Beliichtung Kompensatioun | Ënnerstëtzung | ||||
| Shutter Speed | 1/3 ~ 1/30000s | ||||
| BLC | Ënnerstëtzung | ||||
| HLC | Ënnerstëtzung | ||||
| WDR | Ënnerstëtzung | ||||
| Wäissbalance | Auto, Manuell, Indoor, Outdoor, ATW, Natriumlampe, Street Lamp, Natural, One Push | ||||
| Dag / Nuecht | Elektresch, ICR (Auto / Manuell) | ||||
| Focus Modus | Auto, Manuell, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF | ||||
| Elektronesch Defog | Ënnerstëtzung | ||||
| Flip | Ënnerstëtzung | ||||
| EIS | Ënnerstëtzung | ||||
| Digital Zoom | 16x vun | ||||
| Extern Kontroll | TTL | ||||
| Interface | 4pin Ethernet Hafen, 6pin Power & UART Hafen, 5pin Audio Hafen. | ||||
| Kommunikatioun Protokoll | SONY VISCA, Pleco D/P | ||||
| Betribssystemer Konditiounen | (-10°C~+60°C/20% bis 80%RH) | ||||
| Stockage Konditiounen | (-20°C~+70°C/20% bis 95%RH) | ||||
| Stroumversuergung | DC 12V | ||||
| Stroumverbrauch | statesch Muecht: 3.5W, Sport Muecht: 4.5W | ||||

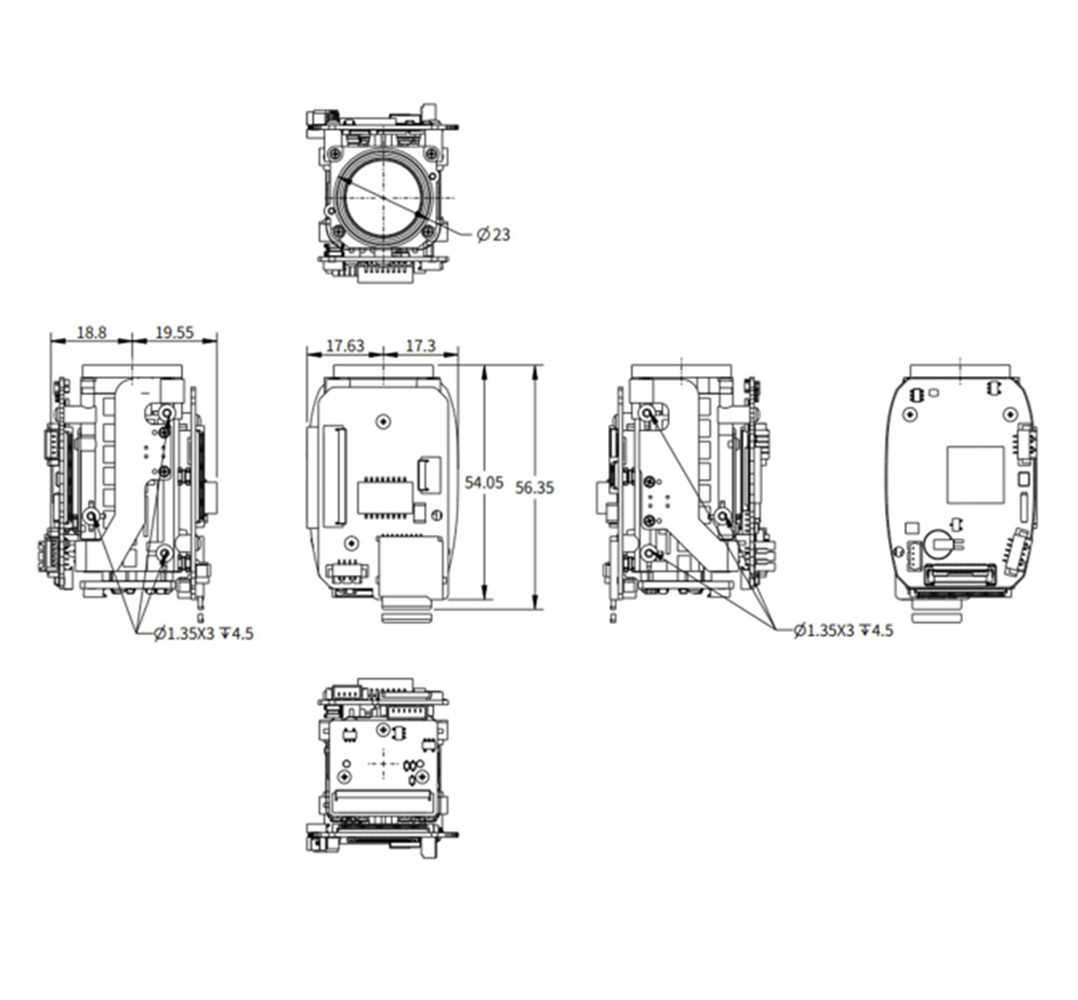

| Dimensiounen (L*W*H) | 55mm * 30mm * 40mm | ||||
| Gewiicht | 55g vun | ||||
